web-pinentry: decrypt server keys from your phone

web-pinentry is a pinentry program for Linux servers, allowing you to decrypt keys on your server remotely via your phone. It relies on HTTP and the Matrix protocol. This is a modern approach to tasks often faced during server boot up, when things like SQL passwords and API tokens need to be ascertained before services can begin.

Sensitive server credentials are historically stored in environment variable files. Though this legacy approach eases automated server startup, it carries a huge cost in terms of security. If the server becomes compromised, passwords and other sensitive information within environment variables and plaintext config files poses a security threat. Server admins may ultimately feel compelled to reject server access to engineers or technicians lest they gain knowledge of crucial passwords in config files.

To solve this problem, passwords can be encrypted with a GPG wrapper tool such as pass. Rather than pulling passwords from a file, they are obtained through subprocess calls, e.g.

pass sql-root-password pass github-token

This is a standard practice on Linux desktops, but not yet on servers.

web-pinentry attempts to make this workflow more feasible on servers. Programs typically pause for user authentication when executing GPG or pass commands. On desktop, a user may types a password or inserts a Yubi key before things can resume. web-pinentry does not assume the user has physical access to the computer, taking a radically different yet somewhat simple approach.

How web-pinentry works

web-pinentry is designed to override the builtin GPG pinentry program: Rather than waiting for a password to be typed in the same terminal as the current process, web-pinentry awaits a user password over the network via a temporary login link. Here is an example of this altered workflow:

• An engineer reboots a server.
• The init system (systemd or otherwise) starts up the various services.
• Among these is a Scala REST API that attempts to reach a remote DB.
• In the Scala code, a subprocess is used to configure the SQL password:
  • I.e. pass sql-root-password is executed as the REST API spins up.
• Under the hood, GNU pass attempts to decrypt a master-password-protected file containing the SQL login details.
• This triggers a pinentry program which seeks the master password.

Usually this is the point at which most naively configured systems would hang or timeout. However, with web-pinentry as your default pinentry program, the workflow continues unininterupted:

• GPG communicates with web-pinentry, and the latter spins up a temporary HTTP server.
• On this HTTP server, there is exactly one randomly generated path.
• This path is sent as a URL to a Matrix channel, where the system admin can then enter the GPG master password.
• Passwords and API keys are then momentarily available for the server's startup procedure.

Security Details

• Login paths only live for two GET requests, and the pinentry program must therefore try again with a new link if you type your password wrong.
• web-pinentry's HTTP server only responds to requests made via docker network IPs or localhost.
  • It's imperative to run web-pinentry behind a HTTPS proxy (recommendation: caddy).
• All paths that are not the login path are restricted.
• The login link is sent to Matrix via matrix-commander-rs, which needs to be configured in advance.
• The login link is randomly generated anew on each invocation.
• Once a password is entered correctly, the HTTP server is torn down.

WARNING: It is highly recommended to use a GPG master password that is randomly generated and stored within a password manager. This protects you from phishing attacks and can further automate the pinentry workflow. Without this protection, a bad actor could create a visually similar website to the web-pinentry default login, and attempt to prompt you for your password.

Requirements

• GnuPG
• matrix-commander-rs
• Matrix
  • Your Matrix user
  • A Matrix bot user (just a normal user with a noticeable username like notification-bot)
  • A private Matrix channel between you and the bot (preferably encrypted).
  • A Matrix client app for mobile, e.g. Element
• A proxy server with HTTPS support (E.g. caddy)
• A DNS subdomain/domain you control. For development contributors only:
• rust

Installation instructions

Building and installing the web-pinentry program:

# Build the web-pinentry program
cargo build
# Copy the program to a PATH directory
sudo cp target/debug/web-pinentry /usr/bin

Install a Matrix client on your phone. Sign up (on the default server, or your own self-hosted one), and log in. Once you've done that, create a private channel with a name like GPG Login Requests. Create another Matrix user that will be used as a bot account. Again, give it a recognisable username like gpg-bot. Logged in as your own Matrix user again, invite the bot to the private channel you created. Logged in as the bot once more, accept the invitation. Don't log out as the bot just yet, until the following steps have been completed.

You should now have a properly set up Matrix user, bot user and a channel shared by each. Next, install matrix-commander-rs on your server, which will be used by the bot to send messages to you:

git clone https://github.com/8go/matrix-commander-rs
cd matrix-commander-rs
cargo build
sudo cp target/debug/matrix-commander-rs /usr/bin

Linking your bot to matrix-commander-rs:

matrix-commander-rs \
    --login password \
    --user-login \
    @gpg-bot:matrix.org \
    --password <BOT PASSWORD> \
    --device web-pinentry \
    --room-default '!room_id:matrix.org' `
    --homeserver 'https://matrix.org'

Testing that you can receive messages from the bot:

matrix-commander-rs --message 'Hello world!'

The above should trigger a notification on your phone via the Matrix client app you have installed.

You might notice the message come with a warning about the bot's client. On the app you used to login to the bot account earlier, go into settings and manually verify that the web-pinentry client is legitimate. You can use emoji verification if you want to do this with maximal security.

On your Matrix phone app or desktop client, you can now log out of the bot account. It will only ever communicate via messages from your server from now on.

Ensure you're logged into your Matrix account on your phone app to receive security requests in your shared channel with the bot.

Configuring web-pinentry as the default GnuPG pinentry program:

if [ ! "$GNUPGHOME" ]; then GNUPGHOME="$HOME/.gnupg"; fi
AGENT_CONF="$GNUPGHOME/gpg-agent.conf"
echo "pinentry-program $(which web-pinentry)" >> "$AGENT_CONF"

Testing that the new pinentry program is used:

# Kill the existing gpg-agent, triggering it to restart with the new settings.
kill $(pgrep gpg-agent)
# Run a command that requires GPG master login, e.g.:
pass sql-root-password

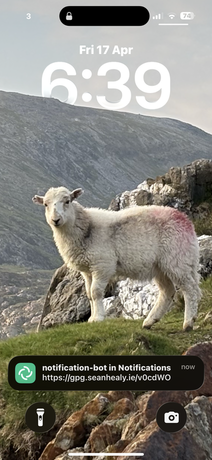

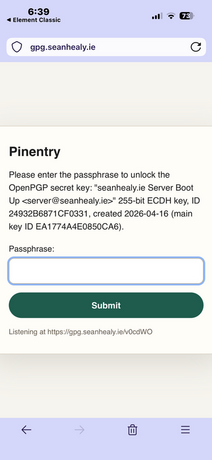

If all goes well, the above command should hang for a while, and without much delay you should receive a notification on your phone from the gpg-bot, with a link to a login URL. Click this link and allow your password manager to relay your GPG decryption password to the web form. After submitting this form, you'll notice the pass sql-root-password command is no longer hanging, and has printed the password to the console. You'll also notice that the previous link and its entire domain are no longer reachable.
